MARINE & OFFSHORE
IBAK Marine, marin tip Searchlight ve Heater üretimi üzerine uzmanlaşmıştır. Ana ofis binası Kiel, Almanya’da bulunmaktadır.
Ürünlerin üretimi Kiel’deki fabrikalarında gerçekleştirilmekte ve geçerli kalite kontrol sertifikalarına sahiptir.

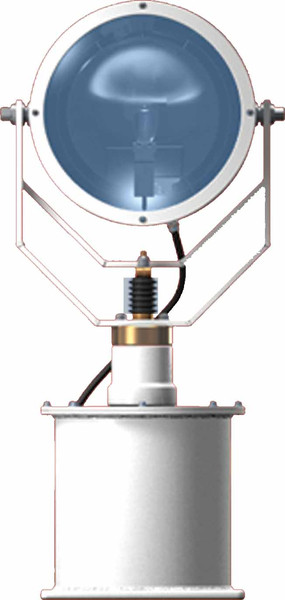

Xenon Marine Searchlights X480/X580
Technical Data:
- Material: Stainless steel and seawater resistant aluminium with structure coating in white
- Protection: IP56
- Reflector: Aluminium or Rhodium
- Voltage: 220-240V 50/60 Hz
- Power: 1kW or 2kW
- Equipment: Electrical focusing device, ignition unit integrated in searchlight head, anti-condence heater
- Aiming distance (1 lux): 4240 m to 9327 m
LED Marine Searchlights LEDS436
Technical Data:
- Material: Seawater resistant aluminium with structure coating in white
- Protection: IP56
- Reflector: None
- Voltage: 230V
- Power: 180W
- Aiming distance (1 lux): 1200 m
Halogen Marine Searchlights NHS
Technical Data:
- Material: Seawater resistant aluminium with structure coating in white
- Protection: IP56
- Reflector: Aluminium
- Voltage: 120V, 230V or 24VDC
- Power: 250W, 500W (24VDC); 500W, 650W, 1000W, 2000W, 3000W (230VAC)
- Aiming distance (1 lux): 625 m to 1536 m
Suex Canal Searchlight S625
Technical Data:
- LR Type Approved
- Material: Seawater resistant light metal housing
- Cover for front glass
- Voltage: 230V
- Power: 2000W, 3000W
- Aiming distance (1 lux): 1800 m
Daylight Signalling Lamp NHS200
Technical Data:
- MED Approved
- Material: Seawater resistant material
- Protection: IP56
- Voltage: 24VDC
- Equipment: Transport storage pack, colored filters, built in battery
HACO Electric Heater
IBAKmarine HACO is an electric heater with thermostatic control.
System Technical Data
- Certified by: DNV GL
- Material (housing): Seawater-resistant aluminium powder coated
- Protection class: IP55 to IEC60529
- Mounting location: Living quarters, bathrooms, stores and engine rooms
- Type of installation: Wall mounting
- Features: Incorporated thermostat with on/ off switch, Safety temperature limiter
- Power requirement: 230 V/ 440V AC
- Wattages: 300W, 400W, 500W, 800W, 1000W, 1200W, 2000W
HWG Electric Heater
IBAKmarine HWG is an electrical heater with on/off or regulator switch.
- Certified by: DNV GL
- Design: Protection class IP65 to IEC60529
- Mounting location: Washrooms, showers, dry areas and stores
- Features: Temperature limiter, on/off or regulator switch
- Power requirement: 230V - 50/60Hz or 440V - 50/60Hz
- Wattages: 500W, 1000W, 1500W, 2000W
HGL/MA Naval Electric Heater
IBAKmarine HGL/MA is an electrical marine heater in a-magnetic design.
- Design: Shock- and vibration proof, a-magnetic design
- Mounting location: Washrooms, showers, dry areas and stores
- Features: Temperature limiter, on/off or regulator switch (incorporated or in separate switch box)
- Power requirement: 230V - 50/60Hz or 440V - 50/60Hz
- Wattages: 500W, 1000W
