Denizcilik sektöründe yüksek bir tecrübeye sahip olan Marinelec Technologies, klas kuruluşlarının kural ve yönergelerine uygun olarak sektör için elektronik sistemler geliştirmesi üzerine yoğunlaşmıştır.

Teknolojideki son yenilikleri sistemlerine monte eden Marinelec Technologies, müşterilerinin özel isteklerine Bureau Veritas, Det Norske Veritas GL gibi kalite kontrol kuruluşlarının kurallarına paralel olarak özel sistemler tasarlayıp, çözümler üretebilmektedir.

Marinelec Technologies; yolcu gemileri, feribotlar, ticari gemiler, LNG taşıyıcı gemiler, balıkçı gemileri, donanma gemileri, yelkenliler, yatlar, römorkörler gibi çeşitli gemilere uygun çözümler üretebilmektedir.

In order to prevent any risk linked to fire activating on board, Marinelec Technologies has designed a range of equipments intented for fire detection.

Those equipment, conventional or addressable, are specially designed to meet the requirements of size and configuration of your ship. The Marinelec fire detection systems comply with the International Maritime Organisation´s standard sequences.

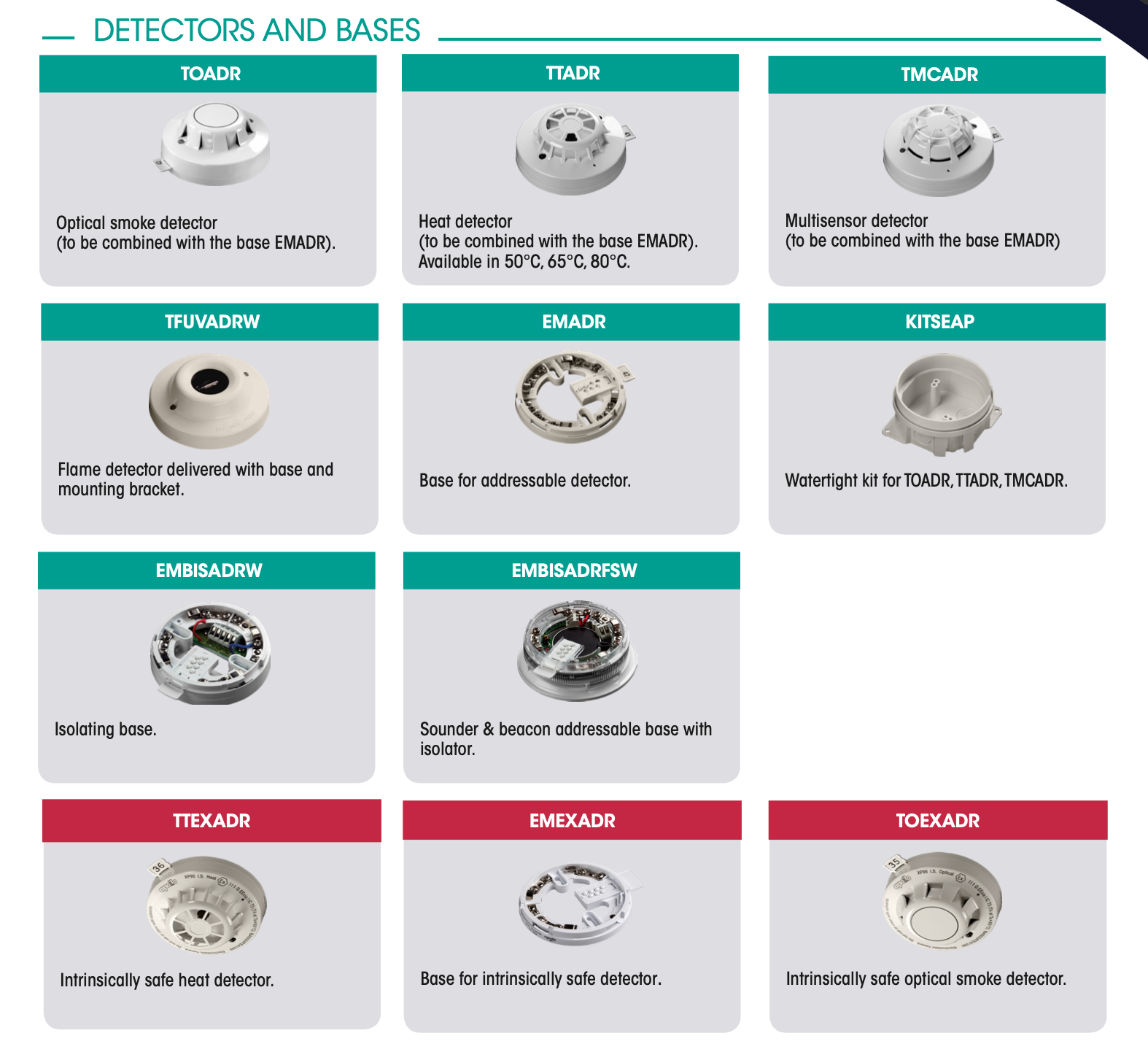

PHOENIX V2 - Adressable fire detection panel

PHOENIX V2 is a very compact networkable 2 loops analogue addressable fire detection panel. Allows decentralized configuration of up to 8 panels and 2016 detectors. Integrates Cause & Effects software to program integrated I/Os and loop devices operation.

DI09 - Conventional 4 zones fire detection panel

The DI09 is a conventional 4 zone fire alarm panel. For each zone, you can connect up to 10 detectors or manual call points, with standard or watertight bases. (optical smoke detector, heat, flame, or intrinsically safe).

CARINA - Conventional fire detection panel 8 zones

The CARINA fire detection unit is a conventional type panel including 8 zones. Its total capacity is 256 manual call points or detectors, with a standard or waterproof base. For each zone, you can connect 32 detectors and/or manual initiators (optical smoke detectors, rate of temperature rise detectors, flame detectors, in standard or intrinsically safe mode), remote alarm indicators, etc.

Water ingress, watertight doors and windows opening, electrical or engines faults, various risks. Marinelec Technologies designs solutions to centralize your alarms management.

Those equipment adapt to your ship size and specificities, are in compliance with the different regulations and are Bureau Veritas approved.

MACCS

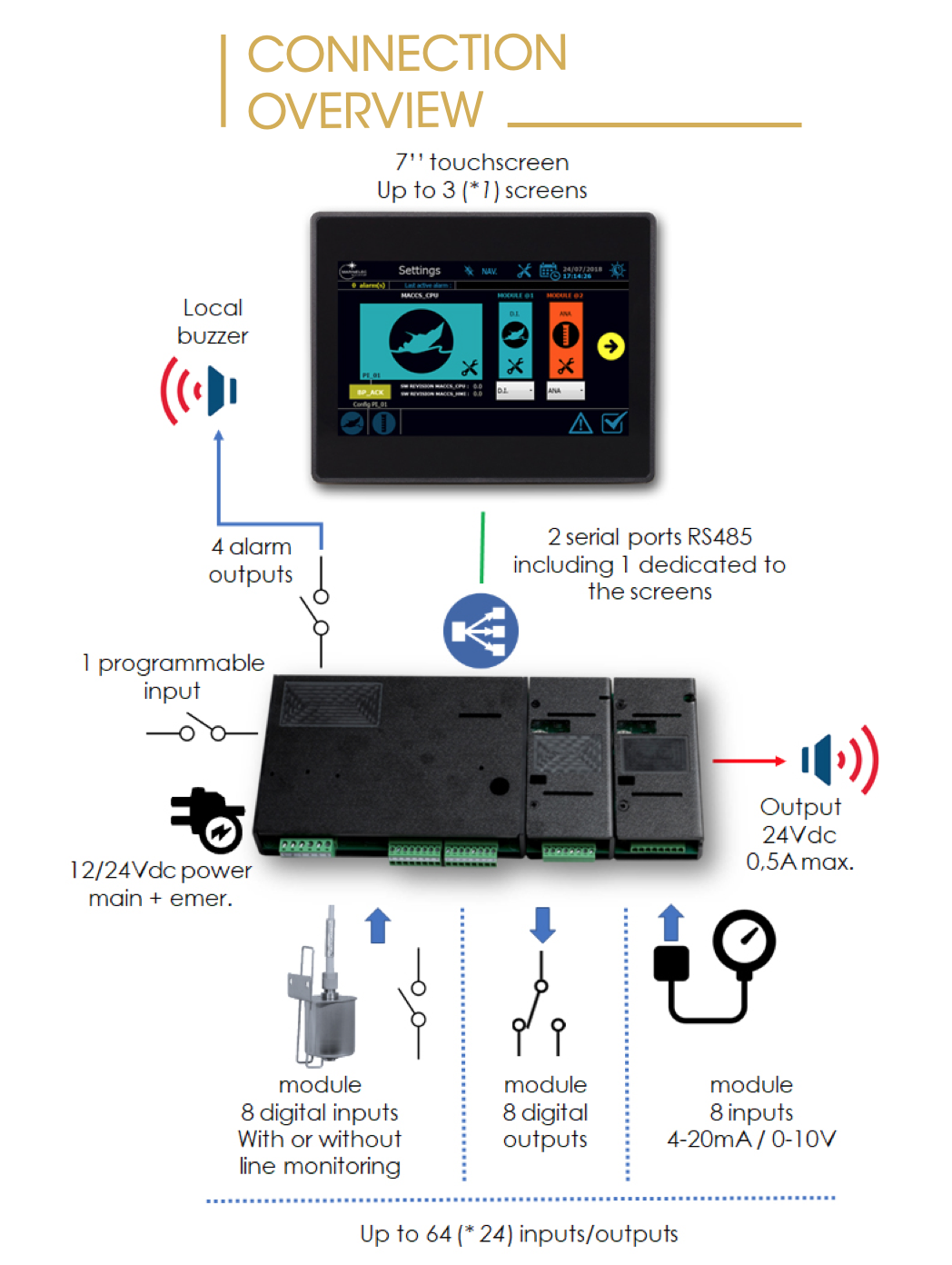

The MACCS system is a safety equipment for monitoring digital inputs (monitored or not) and analog inputs as well as the control of various equipment. Its modular design allows a maximum of 68 inputs / outputs. Its human-machine interface consists of a 7" color touch screen, enables a clear and precise display of all alarms and controls.

MACCS 8L

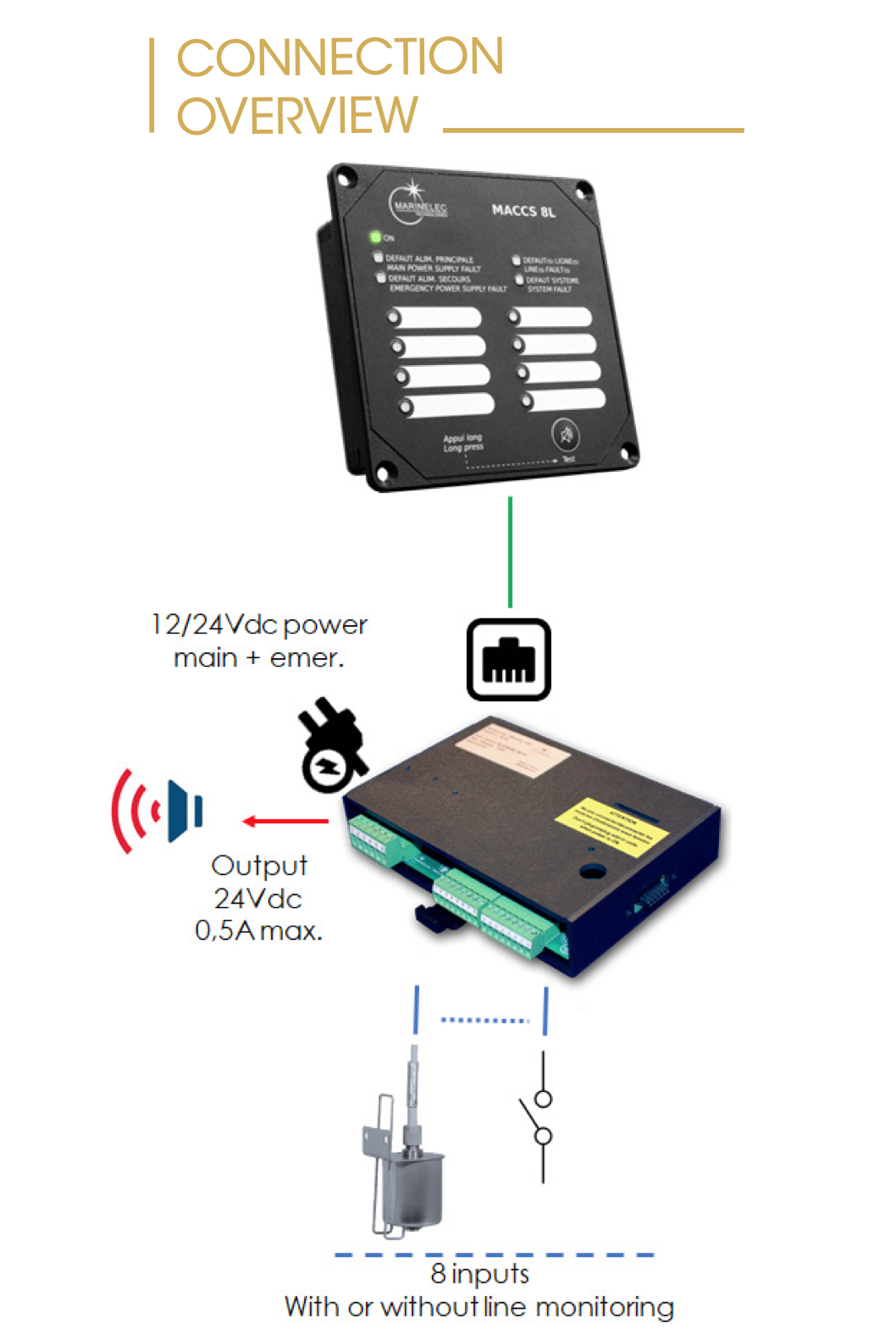

MACCS_8L, is a safety device capable of monitoring 1 to 8 water level detectors (MARINELEC reference: VIGIFLO_B_SL). The product is designed to ensure reliable and secure water ingress detection on small to medium sized vessels.

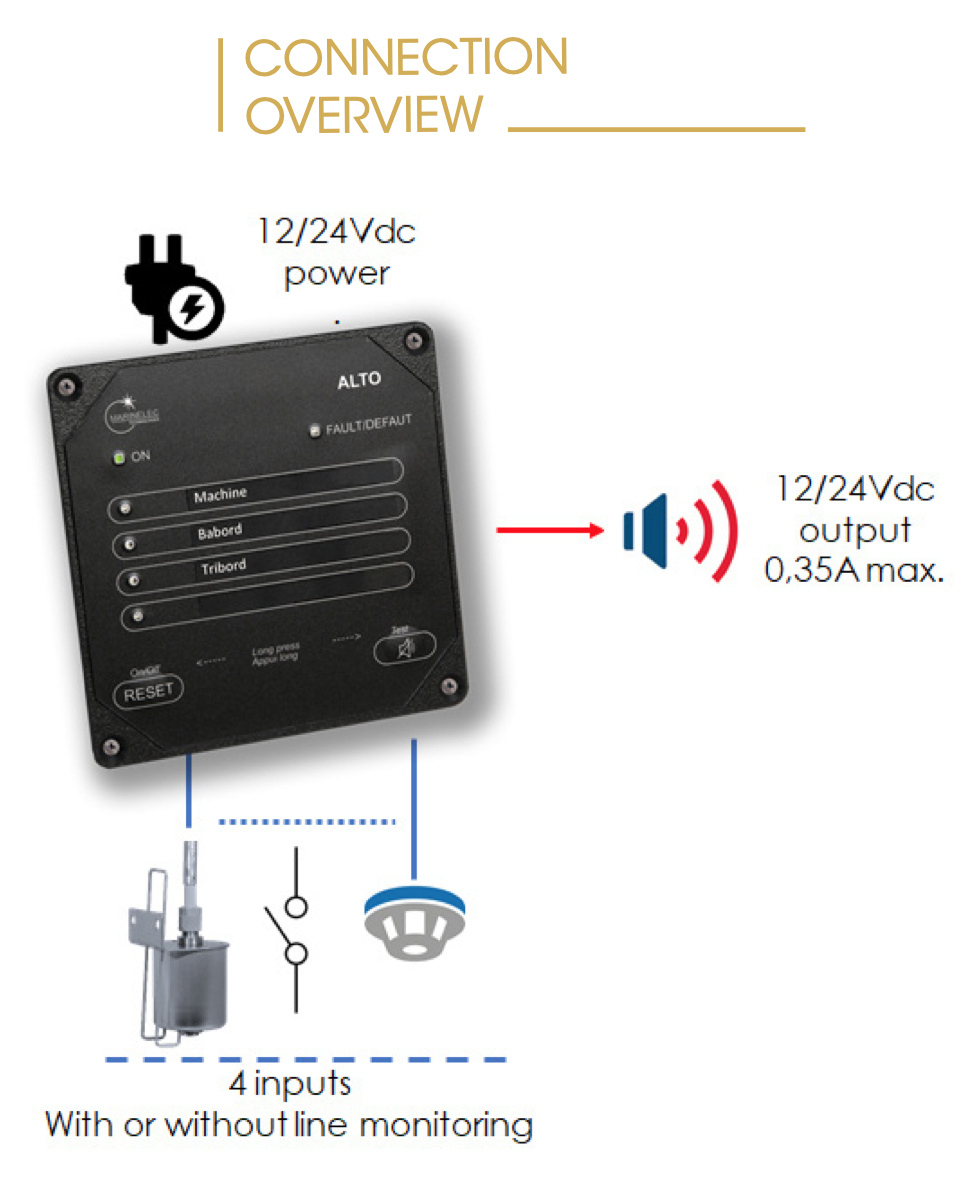

ALTO - Configurable 4 channels alarm panel

Alarm panel with 4 channels providing light and sound signaling for all types of senors A.O.N. (all or nothing) and in particuar those intended for flood and fire detection.

HYDRA V2

The HYDRA V2 is an analogue level display. It is compatible with a large number of standards used in the marine industry such as 0-10VDC, 4-20mA and resistive probes.

VIGIFLO_B_SL

VIGIFLO level detectors provide detection of water ingress onboard ships. We offer products with line monitoring VIGIFLO_B_SL or without line monitoring VIGIFLO_B.

This equipment ensures the running orders transmission of the ship between the wheelhouse and the engine room.

Approved by Bureau Veritas and complying with the orders transmission regulations in force in the maritime sector, this product offers you the solution to compensate in last resort for the defect of your propulsion order system.

ORION V2

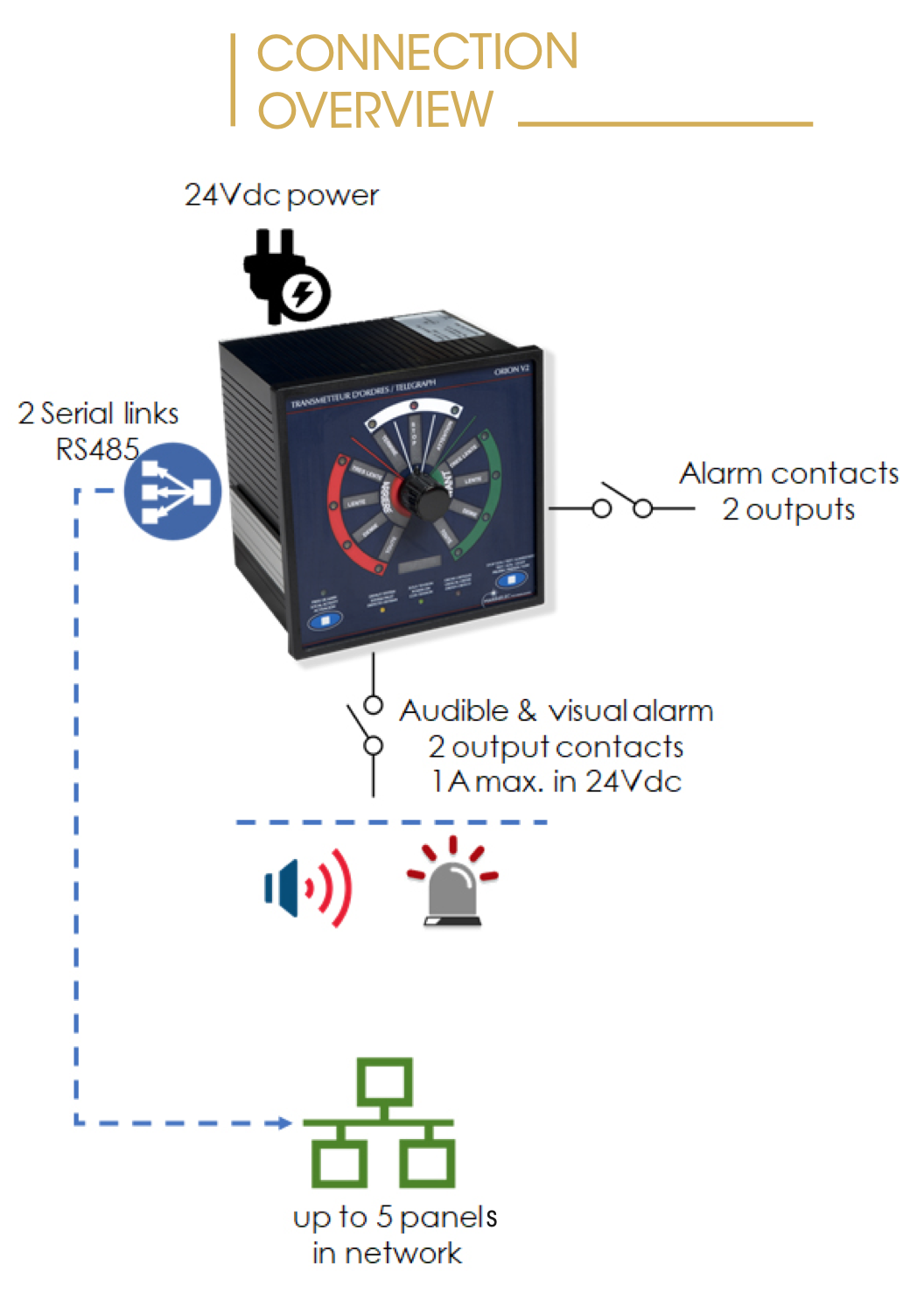

The ORION V2 is a regulatory safety device ensuring the transmission of orders between the engine room and the wheelhouse. The connection between the different stations (from 2 to 5 stations) is provided by an RS485 bus.

Specifications

  • 11 positions
  • Up to 5 panels per line
  • 3 mounting version: Flush, Surface, Rack
  • Power supply in 24 Vdc

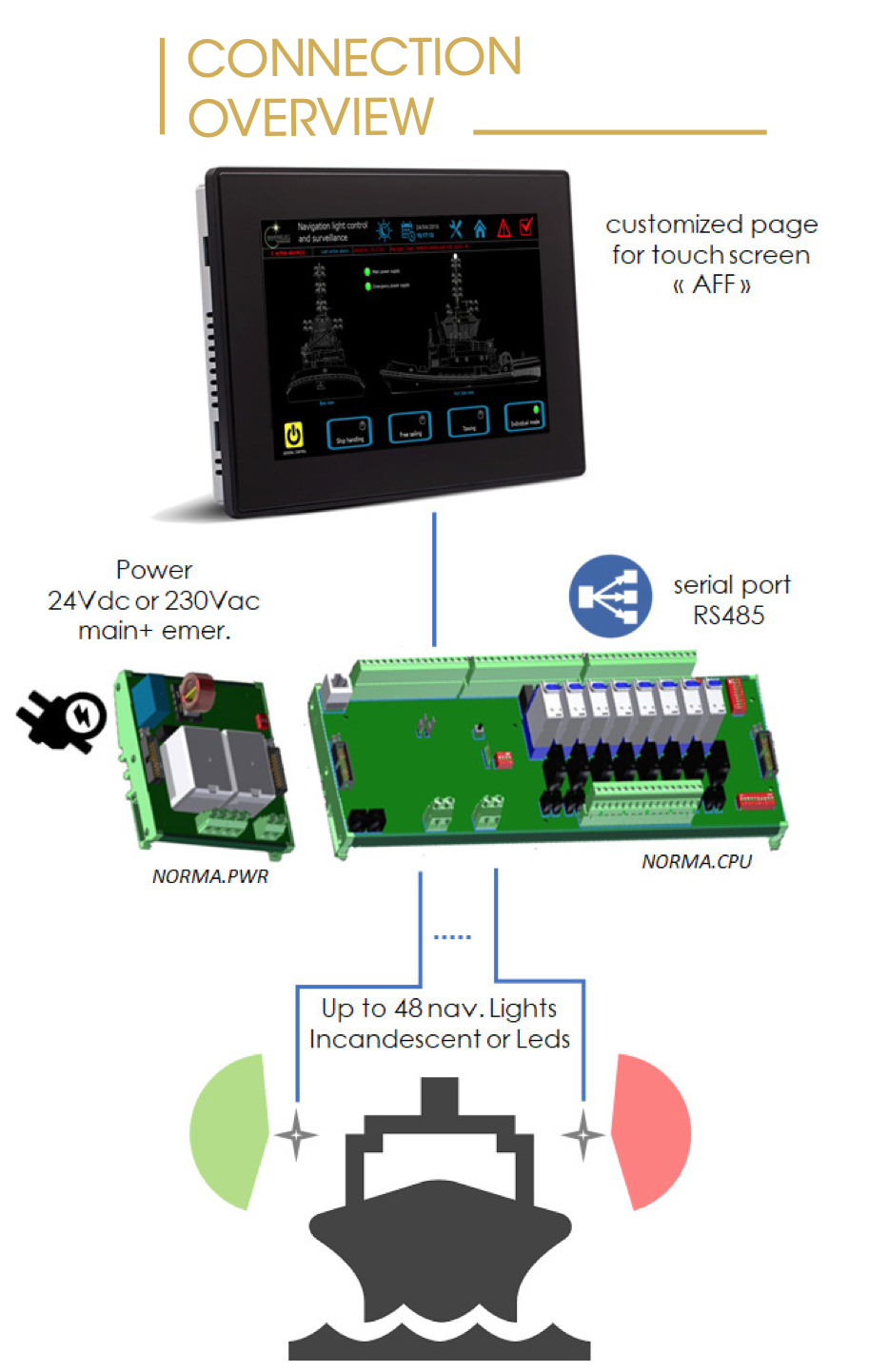

NORMA is a navigation light alarm system. It can monitor and control up to 48 24VDC/230VAC navigation lights with a power ranging from 0.5W to 60W. The navigation lights can be controlled by the standard front panel (NORMA.CP), by a mimic panel (NORMA.SYN) or by a touch screen (NORMA.AFF).

General Specifications

  • To be used with NORMA.CPU and NORMA.PWR units
  • Serial connections to control panel, AMS, VDR
  • Filament bulb & LED light monitoring
  • Dual power supply in 24Vdc or 230Vac
  • Day/Night Mode



NORMA.AFF - Touch Screen Navigation Panel

  • 10", 15" or 21" touch screen interface
  • Up to 48 navigation lights
  • Custom MIMIC pages design
  • Pre-defined mode selections



NORMA.CP - Compact Navigation Panel

  • Up to 14 navigation lights
  • Customizable label
  • Compact design



NORMA.SYN - Synoptic Navigation Panel

  • Fully customized MIMIC design and size
  • Integrated dimmer
  • Up to 48 navigation lights

Marinelec Technologies manufactures products to report your presence to the other vessels and transmit warning messages in the different areas of your vessel.

- A range of warning and information light columns
- A general alarm system
- An automatic foghorn signals sequencer designed in compliance with the regulation in force

AVAS - Audio visual alarm sequencer

The AVAS system is an audible and visual alarm sequencer which functions are:

- General alarm
- Control of whistle and foghorn
- Management of signals from and to Public Address System

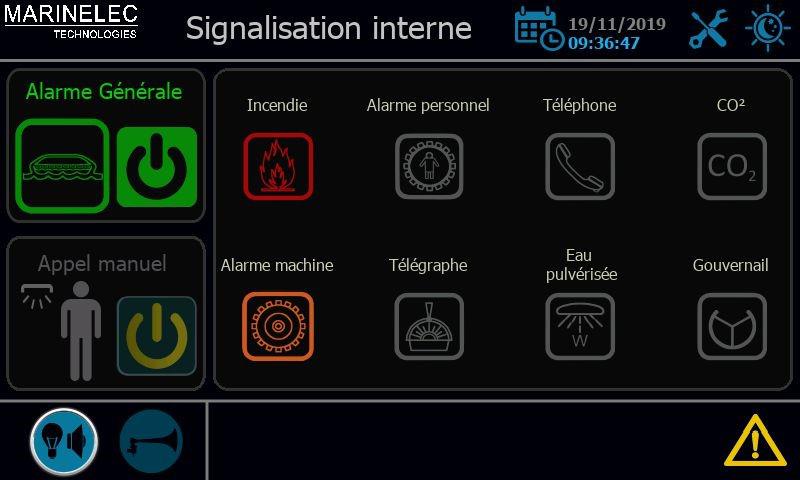

Its 7’’ color touchscreen user interface enables a clear and precise display of the control functions.
AVAS is designed and Bureau Veritas approved to ensure the perfect management of the ship’s audible and visual signals.
AVAS system can be extended with addional functions to control light columns (AVASXM).

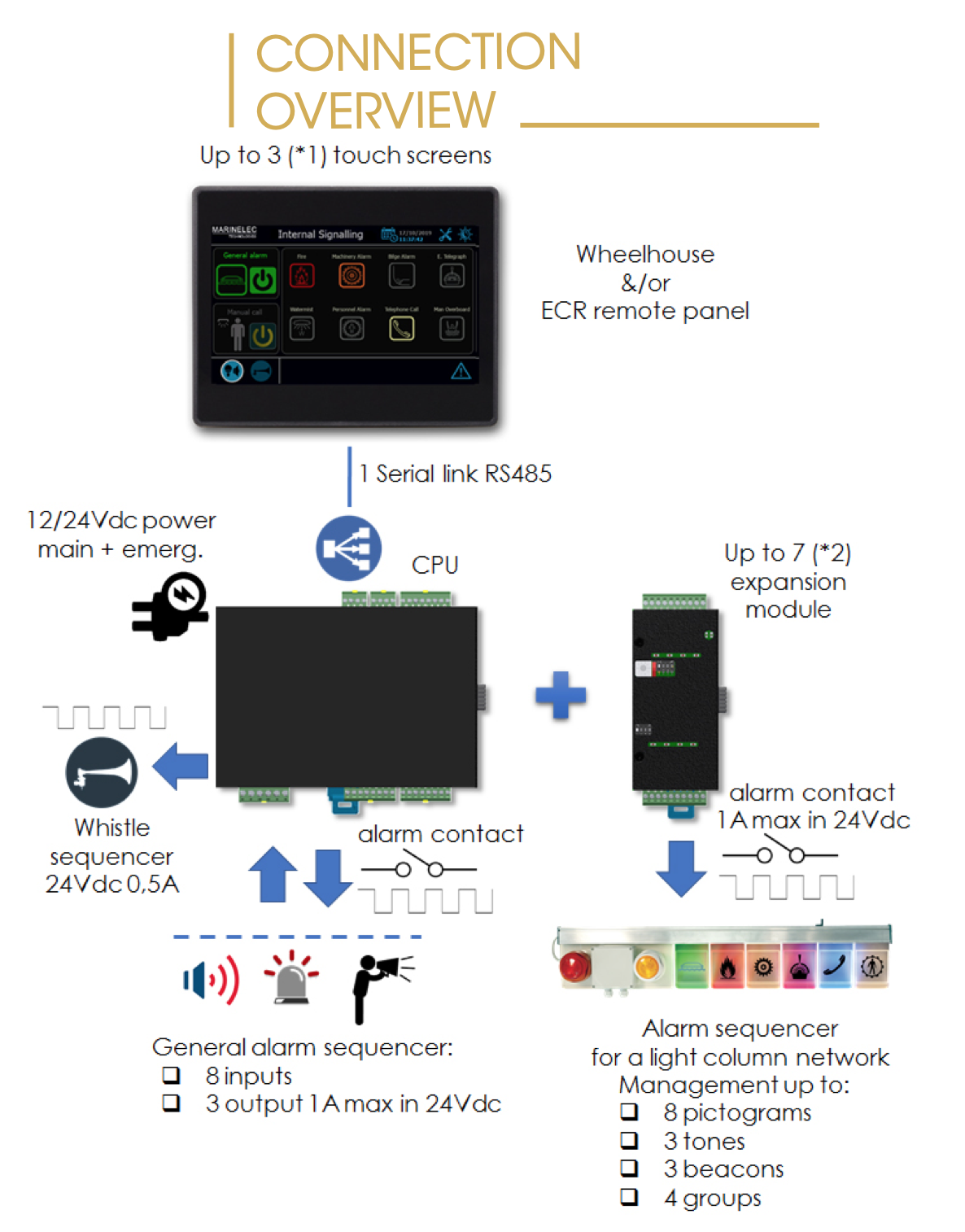

AVASXM - Audio visual alarm sequencer

AVASXM is an audible and visual alarm sequencer which functions are:

- General alarm
- Control of whistle and foghorn
- Management of signals from and to Public Address System
- Control of alarm light columns

Its 7’’ color touchscreen user interface enables a clear and precise display of the control functions.
AVAS is designed and Bureau Veritas approved to ensure the perfect management of the ship’s audible and visual signals.

CL09 - Information light column

The light column is particularly created to relay visual and sound information which are destinated to the crew in noisy environments. It has to be installed in engine room and crew’s quarter in order to inform safety boat responsible persons.

No more potentially dangerous situation with these products designed by Marinelec to ensure the on watch vigilance.

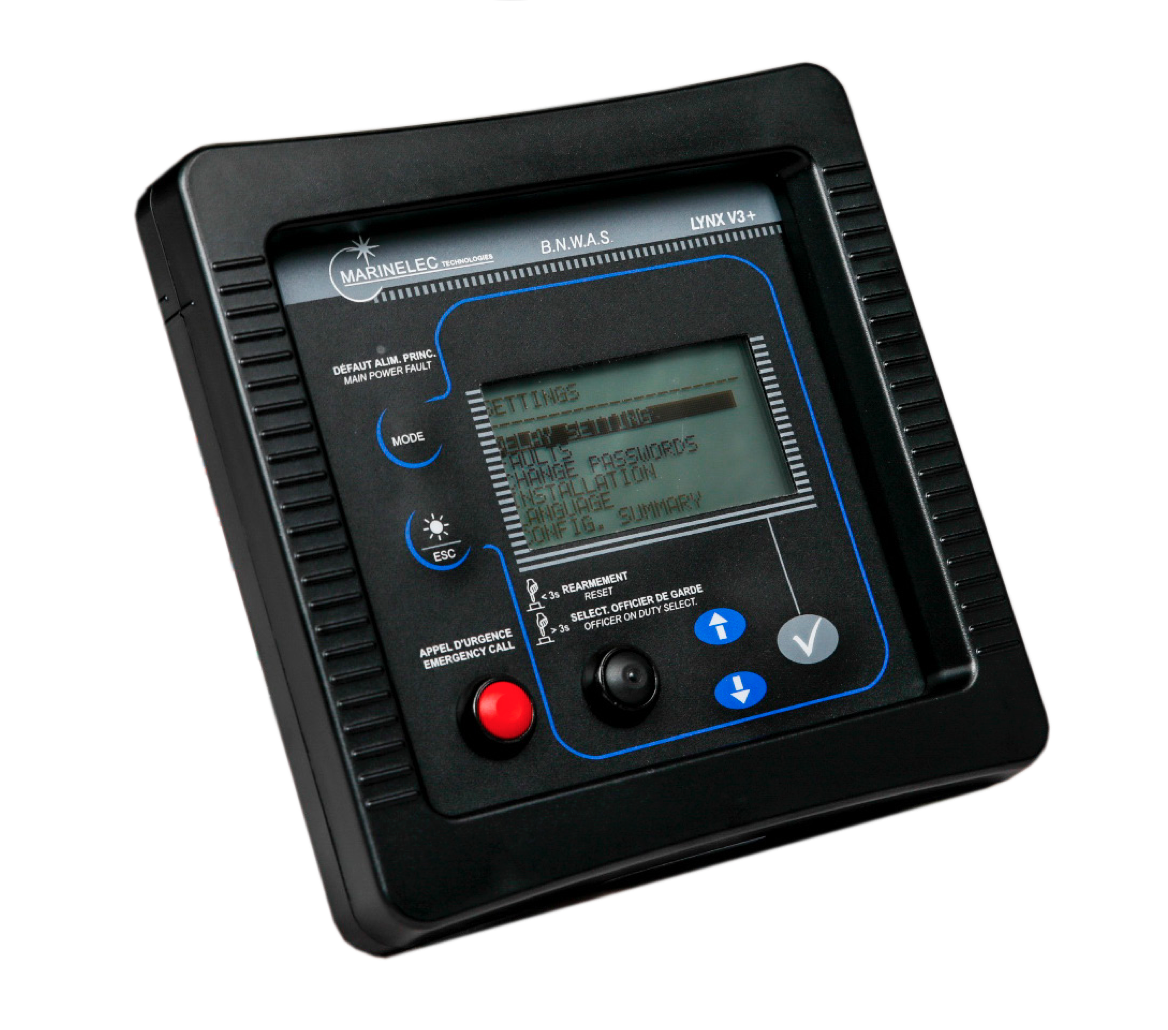

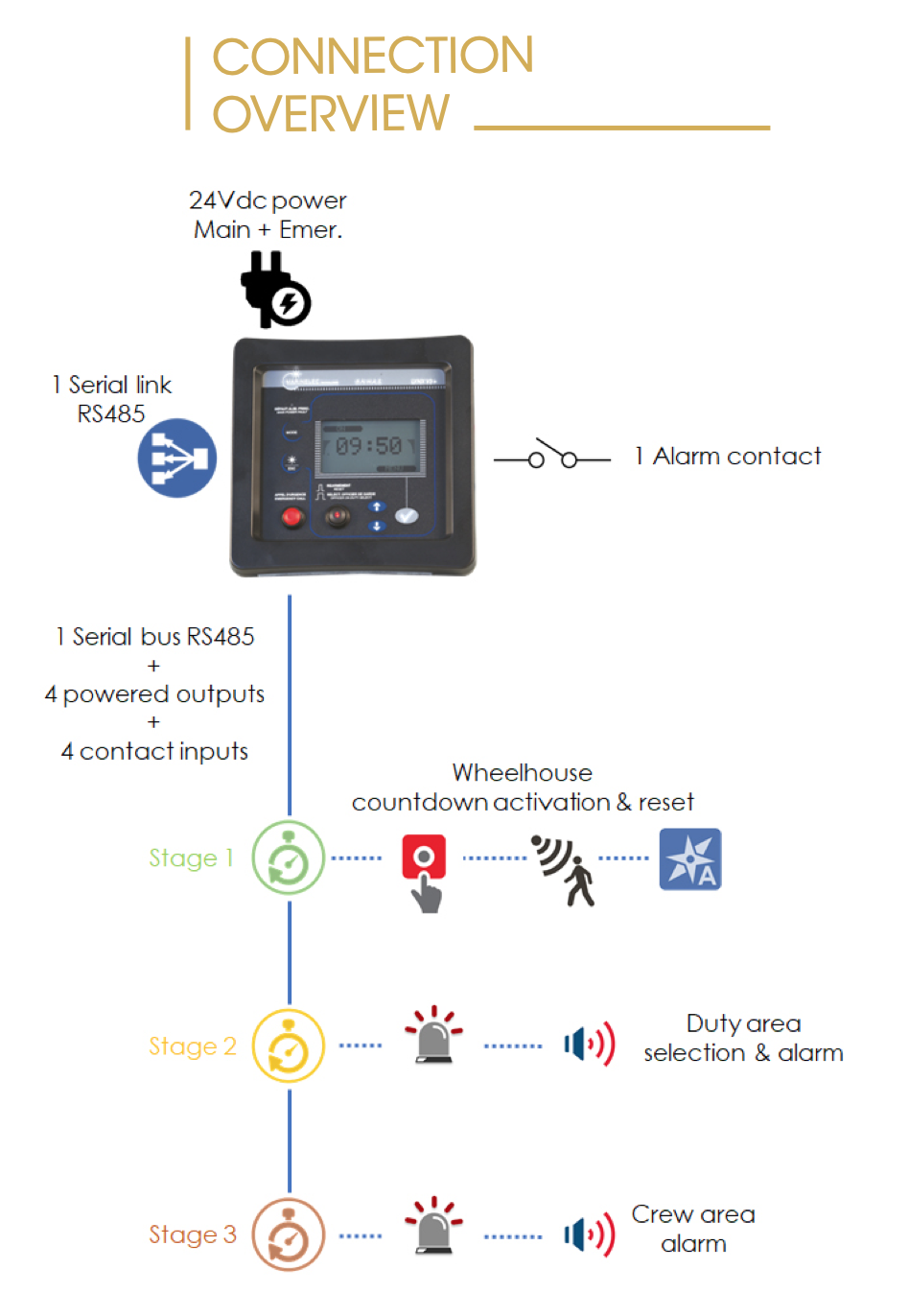

LYNX V3+

The lynx V3+ is a device which monitors the awareness of the officer on watch (engine or bridge) and warns officers and the crew if that officer is unable to carry out their duties.

„The officer must periodically reset the timer (adjustable up to 12 minutes) by simply pressing a luminous button.The activation of the safety equipment is protected by an access code or an external key switch (optional). „

The device is completed with repeater panels which allow the remote reset of the countdown, and the stage one, two and three alarms.

LYNX V3S

The LYNX V3S is a countdown timer system which monitors the awareness of the officer on watch (engine or bridge) and warns the officers and the crew in case that officer is unable to carry out their duties.

„The LYNX V3S must be periodically reset by the officer on watch by pressing an illuminated button. „It is adjustable from 12 to 3 minutes and its activation is ensured by a key switch.

„It meets the division 212 of the French Merchant Navy concerning the requirements of watchkeeping by a single officer. (Fishing vessel on sea trips of 24 hours or more).

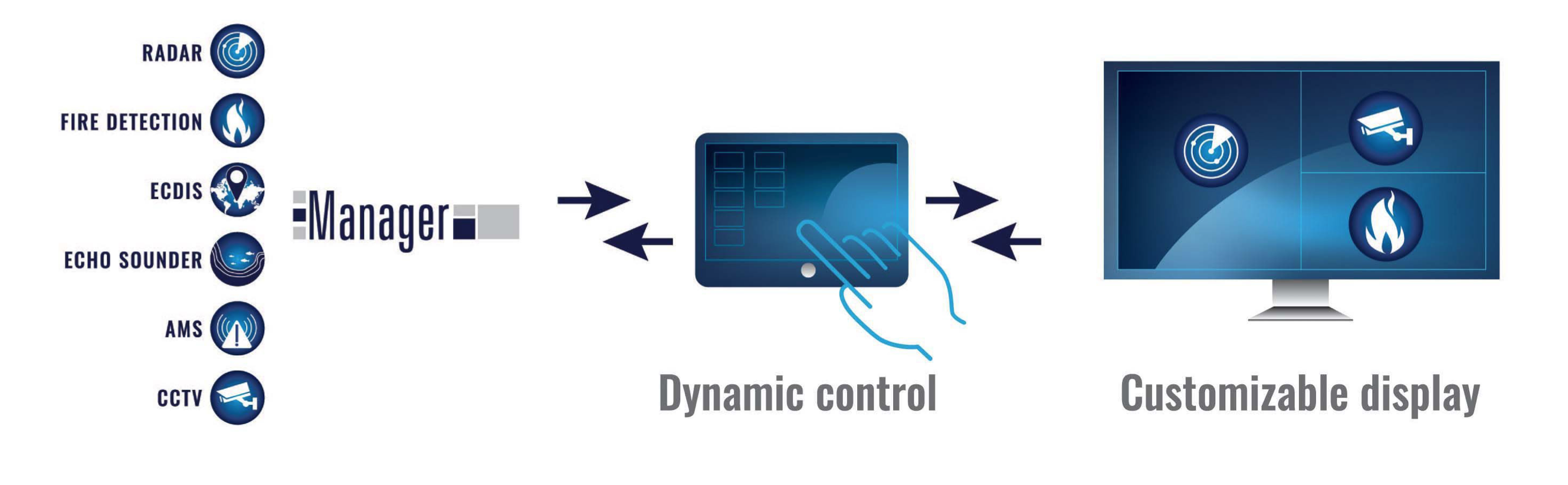

MANAGER - Integrated Bridge Information System

All your navigation at your fingertips for greater comfort, efficiency and safety.

„Manager integrates, centralizes and displays in real time the different essential information systems of the bridge.

„It is a decision-support tool providing crew ergonomic comfort for greater safety and efficiency in the conduct of the ship.

  • „Display of customized layouts in dedicated screens.
  • „Real time display of single or composed layouts.
  • Real time of complete or partial layouts.
  • Selection of predefined layouts made by touchscreen or standard button panel
  • Real time Integration in the MANAGER of bridge essential systems: „ECHO SOUNDER, RADAR, SONAR, ECDIS, CCTV, Alarm and Monitoring System, Fire detection system, Fire doors mimic panels...
  • Selection of customized (size, resolution and quantity) layouts of each screen according to the user specification.
